Vibration analysis is a non-invasive condition monitoring technique that measures and analyzes vibration signals emitted by rotating or reciprocating machinery to detect mechanical anomalies. The method serves as a diagnostic tool for identifying, monitoring, and preventing mechanical failures in industrial equipment. As a key component of predictive maintenance programs, vibration analysis enables technicians to detect developing problems before they lead to unplanned downtime or catastrophic failures.
The vibration definition describes the oscillatory motion of an object around a central equilibrium position. All rotating machines generate vibrations during operation, and every asset produces its own unique vibration signature. When vibration levels or patterns change from the established baseline, these alterations typically indicate that the asset requires maintenance attention. Rotating industrial equipment naturally vibrates, but mechanical issues like unbalance, misalignment, bearing defects, or gear wear create distinct alterations in these vibration patterns.
Vibration analysis measures oscillatory movements using specialized sensors, including accelerometers, velocity sensors, and displacement sensors. Accelerometers measure the acceleration of vibrating objects in three directions: vertical, horizontal, and axial. Velocity sensors capture the velocity of vibrations, offering mid-frequency response suitable for monitoring overall machine health, while displacement sensors measure the displacement of vibrating objects with low-frequency response for detecting structural issues and imbalances. These sensors detect and record the intensity (amplitude) and frequency (periodicity) of vibrations. Vibration frequency, measured in Hertz, describes the number of oscillations per second, whereas vibration amplitude quantifies the size of each oscillation or the distance traveled from the central resting position.
The technique identifies mechanical anomalies through abnormal vibration signatures in frequency spectra or time-domain waveforms. Specifically, vibration analysis can detect unbalance (dominant peak at 1x shaft rotational speed), misalignment (vibration at 1x and 2x shaft speed with elevated axial components), bearing defects (high-frequency patterns at characteristic defect frequencies), looseness (non-sinusoidal waveforms and multiple harmonics), gear faults (sidebands around gear mesh frequencies), resonance (amplified vibration at natural frequencies), and rotor bar defects in induction motors (sidebands at pole pass frequency). Each fault mode generates a distinct vibration pattern that acts as a fingerprint of underlying mechanical issues.
How Does Vibration Analysis Work?
The vibration analysis process follows a systematic workflow that transforms mechanical oscillations into actionable maintenance intelligence. This procedure encompasses sensor installation, data acquisition, signal processing, pattern identification, and documentation.
Attach sensors to equipment
Proper sensor mounting establishes the foundation for accurate vibration measurement. Stud mounting provides the widest frequency response and most secure attachment, requiring the machine surface to be drilled and threaded. Adhesive mounting offers permanent installation using epoxy or cyanoacrylate compounds, with adhesive thickness affecting frequency response more significantly than adhesive type. Magnetic mounting bases enable quick installation on ferrous surfaces, though they compromise high-frequency accuracy compared to permanent methods.
Measurement locations follow standardized guidelines, with sensors positioned at bearing housings or structural parts that respond to dynamic forces from rotating elements. A complete measurement set consists of two radial readings positioned 90 degrees apart and one axial reading at each bearing location. Surface preparation requires flat, clean mounting areas free from paint or corrosion to ensure optimal signal transmission.
Collect vibration data
Data collection employs either route-based measurements using portable analyzers or continuous monitoring through permanently installed wireless sensors. Modern vibration data collectors capture overall value, spectrum, and time waveform parameters in a single measurement, reducing field collection time by up to two-thirds. State-based collection logic ties data capture to operating conditions rather than fixed time intervals, preventing the accumulation of diagnostically useless measurements from idle equipment.
Analyze frequency and amplitude
Fast Fourier Transform converts time-domain vibration signals into frequency-domain spectra, revealing individual frequency components within complex vibration patterns. Time waveform analysis examines raw signals to identify impacts, intermittent problems, and signal modulation patterns characteristic of bearing defects or looseness. Demodulation analysis filters low-frequency content to expose high-frequency resonances and repeating impact patterns buried in apparent noise floors. Analysts locate running speed peaks, identify sub-synchronous, synchronous, or non-synchronous energy distribution, and verify that waveform patterns support spectral findings.
Identify irregularities
Pattern recognition compares current measurements against established baselines to detect deviations from normal operating conditions. Bearing defects generate vibration patterns weeks or months before building management systems detect temperature drift, providing advance warning for maintenance planning.
Generate reports
Vibration analysis software auto-generates reports using template processing that substitutes data values and graphs in place of variables. Reports export to multiple formats including Word, PDF, HTML, and CSV files, with custom templates incorporating company branding, test parameters, and graphical data.
When Should You Perform Vibration Analysis?

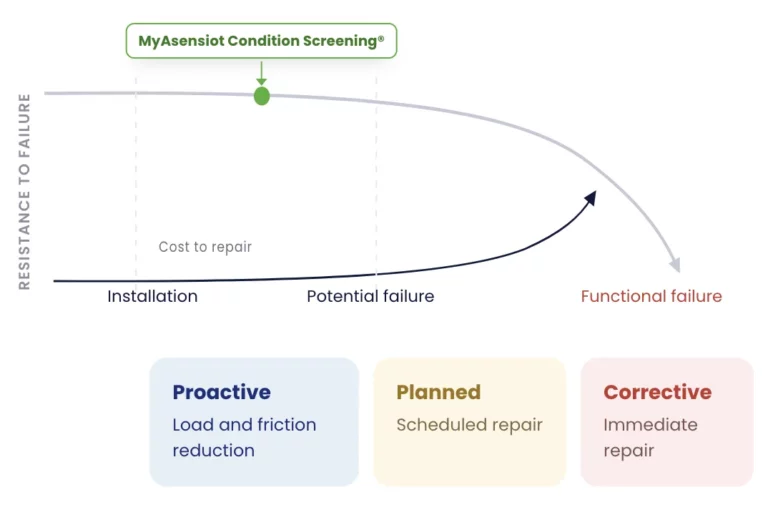

Monitoring frequency depends on the P-F interval, which represents the time between when a potential failure becomes detectable and when it degrades into functional failure. This window determines how often conditional tasks must be performed to detect potential failures such as bearing issues before they escalate. Monitoring intervals are typically set to half of the P-F interval, allowing sufficient time for detection technology to identify problems and for corrective action to be taken. In certain circumstances, data collection at shorter intervals than half of the P-F interval becomes necessary.
Vibration analysis identifies developing machine faults months before they reach critical failure modes. Advanced analysis detects bearing defects 6-12 weeks before failure occurs through frequency domain analysis, preventing catastrophic seizures. This early detection capability enables maintenance teams to schedule repairs without disrupting production schedules or incurring unexpected downtime costs.
Equipment criticality influences monitoring schedules, with resources focused on machines where failure would have the greatest impact on safety, production, or costs. Approved maintenance programs, whether developed internally or outlined by equipment manufacturers, specify minimum intervals for performing analysis. Most operations gain additional value by conducting measurements more frequently than minimum requirements. When used beyond explicit requirements, vibration monitoring becomes a trend monitoring and diagnostic tool rather than merely a maintenance task.
Analysis becomes mandatory after maintenance work that could affect equipment balance or alter mass distribution. Maintenance teams should increase measurement frequency immediately upon detecting changes such as vibration levels creeping upward or new frequencies appearing in the spectrum. Machines on quarterly schedules transition to weekly monitoring the moment they show developing faults.
Failure interval determination provides the foundation for assigning appropriate data collection frequencies. A bearing that develops a failure on day one and runs for ninety days before causing machine failure requires monthly monitoring to identify the condition before catastrophic breakdown. Quarterly monitoring of the same equipment would likely miss the bearing failure condition entirely, resulting in unexpected machine failure. Facilities implementing strategic monitoring programs achieve 50-70% reductions in unplanned downtime while improving overall equipment effectiveness by 35-50% compared to time-based maintenance approaches.
Key Parameters Measured in Vibration Analysis
Vibration measurements rely on three fundamental parameters that quantify different aspects of mechanical oscillation. Acceleration measures the rate of change of velocity over time and emphasizes high frequencies above 60,000 cycles per minute. Piezoelectric accelerometers detect dynamic events with wide frequency response exceeding 10 kHz and wide dynamic range surpassing 120 dB. Acceleration measurements prove effective at identifying early bearing faults, gear defects, and pump cavitation. Velocity quantifies the speed of oscillating motion and emphasizes mid-range frequencies between 600 and 60,000 cycles per minute. Velocity sensors exhibit excellent signal-to-noise ratio for machines with rolling element bearings operating at 60 Hz or less. The overall RMS value of vibration velocity measured over 10 to 1000 Hz provides the best indication of vibration severity on rotating machines. Displacement measures the distance traveled from the original position and emphasizes low frequencies below 600 cycles per minute. Proximity probes serve as the industry standard for measuring displacement on fluid film bearings, where high damping prevents shaft vibration from transmitting effectively to bearing housings.
Amplitude quantification employs multiple measurement approaches. Peak-to-peak values indicate the maximum excursion range, proving valuable for displacement measurements where mechanical clearance considerations matter. Peak measurements capture the highest single amplitude from baseline, highlighting sudden or severe condition changes. RMS values represent the most relevant amplitude measure because they account for time history while relating directly to energy content and destructive capability 18. The RMS value of velocity corresponds to energy levels, making it the primary metric tracked for condition-based and predictive maintenance.
Statistical parameters provide additional diagnostic capabilities. Kurtosis measures the sharpness of amplitude distribution peaks, with high values indicating impulsive events such as impacts or mechanical faults. Crest factor, the ratio of peak value to RMS value, highlights intermittent faults like gear tooth defects or bearing issues through identification of signal spikes relative to overall energy.
Benefits of Vibration Analysis
Predictive maintenance through vibration analysis replaces conventional time-based maintenance approaches that unnecessarily replace functional components or detect damage too late. Conventional maintenance programs shut down machines at fixed intervals regardless of actual condition, generating unnecessary costs while missing developing faults. Condition monitoring detects deviations from ideal operating states at early stages, enabling timely intervention before defects occur.
Unplanned downtime represents one of the largest financial risks for manufacturers, with single-hour shutdowns costing tens of thousands of dollars. Vibration analysis prevents catastrophic failures by identifying mechanical defects at their earliest stages. Detecting bearing wear, shaft misalignment, mechanical looseness, gear mesh defects, and resonance conditions before they escalate prevents expensive secondary damage. Studies demonstrate maintenance cost reductions of 50%, unexpected failures reduced by 55%, repair time decreased by 60%, and spare parts inventory lowered by 30%. Mean Time Between Failures increases by 30% while uptime improves by 30%.
Equipment lifespan extends significantly when machines operate within rated tolerances consistently. Root cause analysis capabilities enable more efficient maintenance decisions. Predictive maintenance shifts organizations from reactive emergency repairs to scheduled interventions, reducing waste and maximizing uptime. Maintenance teams schedule tasks more rationally, eliminating routine activities that add no value.
Safety improvements occur as vibration analysis proactively identifies faults before they create workplace hazards. Equipment failures under load create dangerous conditions, and preventing these failures reduces exposure to safety incidents. Remote monitoring capabilities allow technicians to access vibration data from mobile devices, reducing trips to hazardous or hard-to-reach locations. Real-time reaction to changing health conditions supports continuous surveillance without manual intervention.
Financial benefits extend beyond preventing downtime. Better scheduling accuracy, improved inventory planning, and extended asset life contribute to bottom-line improvements. For manufacturing plants, a 10% maintenance cost reduction produces equivalent financial benefit to a 40% sales increase.
Common Applications of Vibration Analysis
Industrial sectors deploy vibration monitoring across critical rotating machinery where mechanical failures generate substantial operational and financial consequences.
Pumps and motors
Pumps serve as critical infrastructure across wastewater processing, boiler feedwater systems, hospital ventilation, and oil well production facilities. Cavitation detection through vibration analysis prevents impeller damage from bursting vapor bubbles that generate characteristic high-frequency patterns. Vertical pump motors experience unique vibration sources including mass unbalance from hollow shaft designs, coupling misalignment, pump shaft whipping in guide bearings, and hydraulic flow turbulence at 90-degree discharge transitions. Motors equipped with bearings and rotors benefit from vibration diagnostics that identify mechanical failures unrelated to electrical components.
Bearings and gears
Gearboxes contain multiple rotating components including gears, shafts, and bearings that generate complex vibration signatures. Localized tooth faults produce distributed sidebands around gear mesh frequencies, while time-synchronous averaging extracts individual gear and pinion contributions from overall signals. Rolling element bearing faults occur in outer races, inner races, cages, or rolling elements, each generating impacts at characteristic frequencies such as ball pass frequency-inner race. Envelope spectrum analysis serves as the primary diagnostic technique for extracting bearing fault signals from structural resonances.
Turbines and compressors
Centrifugal compressors exhibit lateral, torsional, and axial vibration modes caused by imbalance, misalignment, mechanical resonances, operation near critical speeds, and subharmonic instabilities. Barrel compressors operate in high-pressure oil and gas applications, while integrally geared designs achieve higher pressure ratios in natural gas processing. Steam turbines and syngas compressors operating at elevated speeds require transient data analysis during startup conditions when vibration problems frequently emerge.
Fans and blowers
Industrial fans experience vibration from wheel unbalance, bearing misalignment, bent shafts, and blade pass frequency disturbances. HVAC systems in hospitals and enclosed stadiums rely on fan monitoring to prevent ventilation failures. Blower applications in automotive paint handling detect imbalance from paint buildup on impellers, with corrective impeller cleaning reducing vibration from 40.1 mm/s to 7.8 mm/s.
